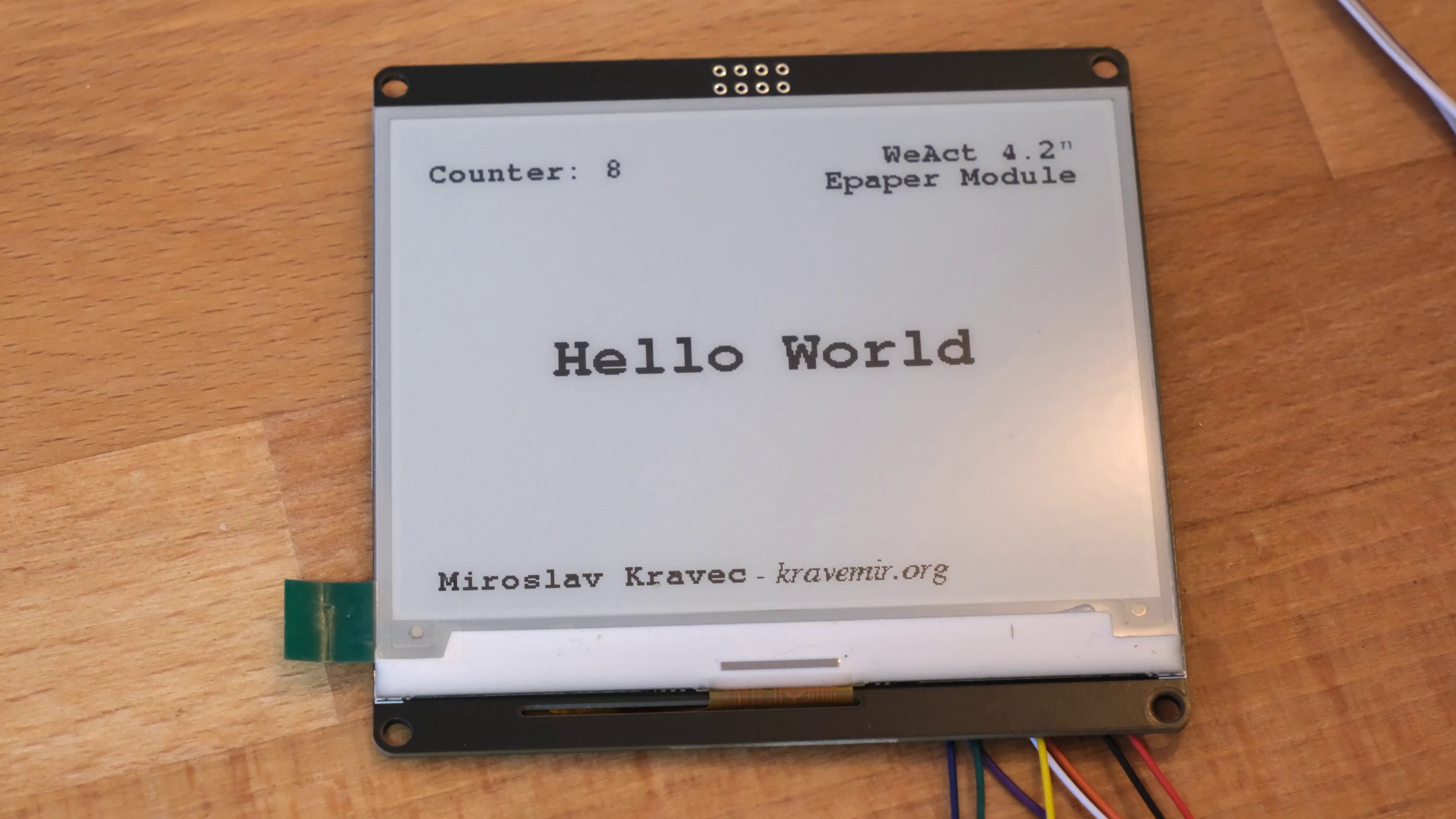

Closer look at WeAct 4.2" Epaper Module

Prerequisites

Main parts:

• ESP32 development board (not yet tested on Arduino),
• WeAct 4.2" Epaper module,
• other wiring ingredients of yours choice.

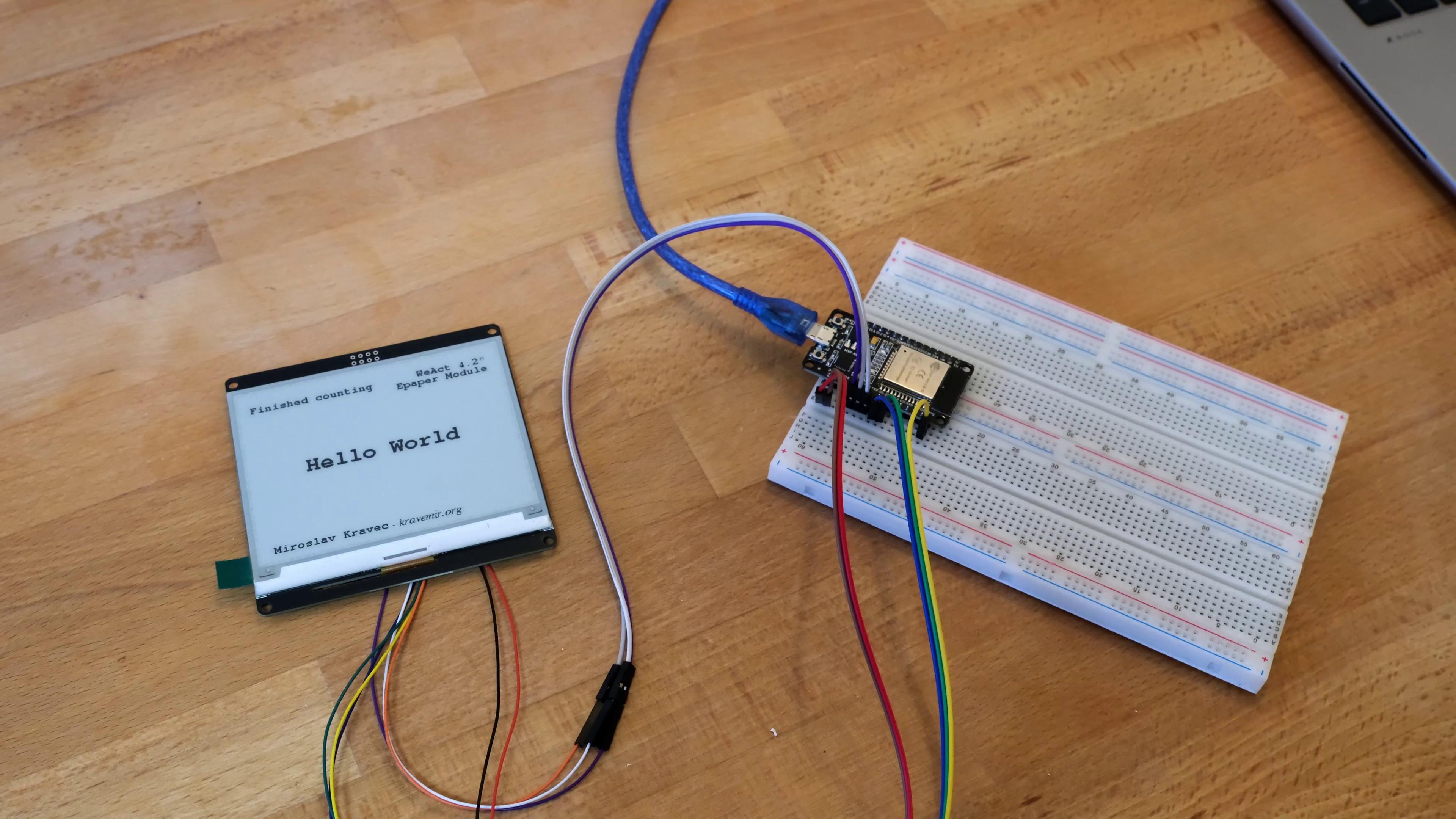

WeAct 4.2" Epaper module connected to ESP32 board on breadboard

Wiring

Connecting ESP32 development board and Epaper Module:

• D4 - BUSY
• RX2 - RES
• TX2 - D/C
• D5 - CS
• D18 - SCL
• D23 - SDA
• GND - GND
• 3V3 - VCC

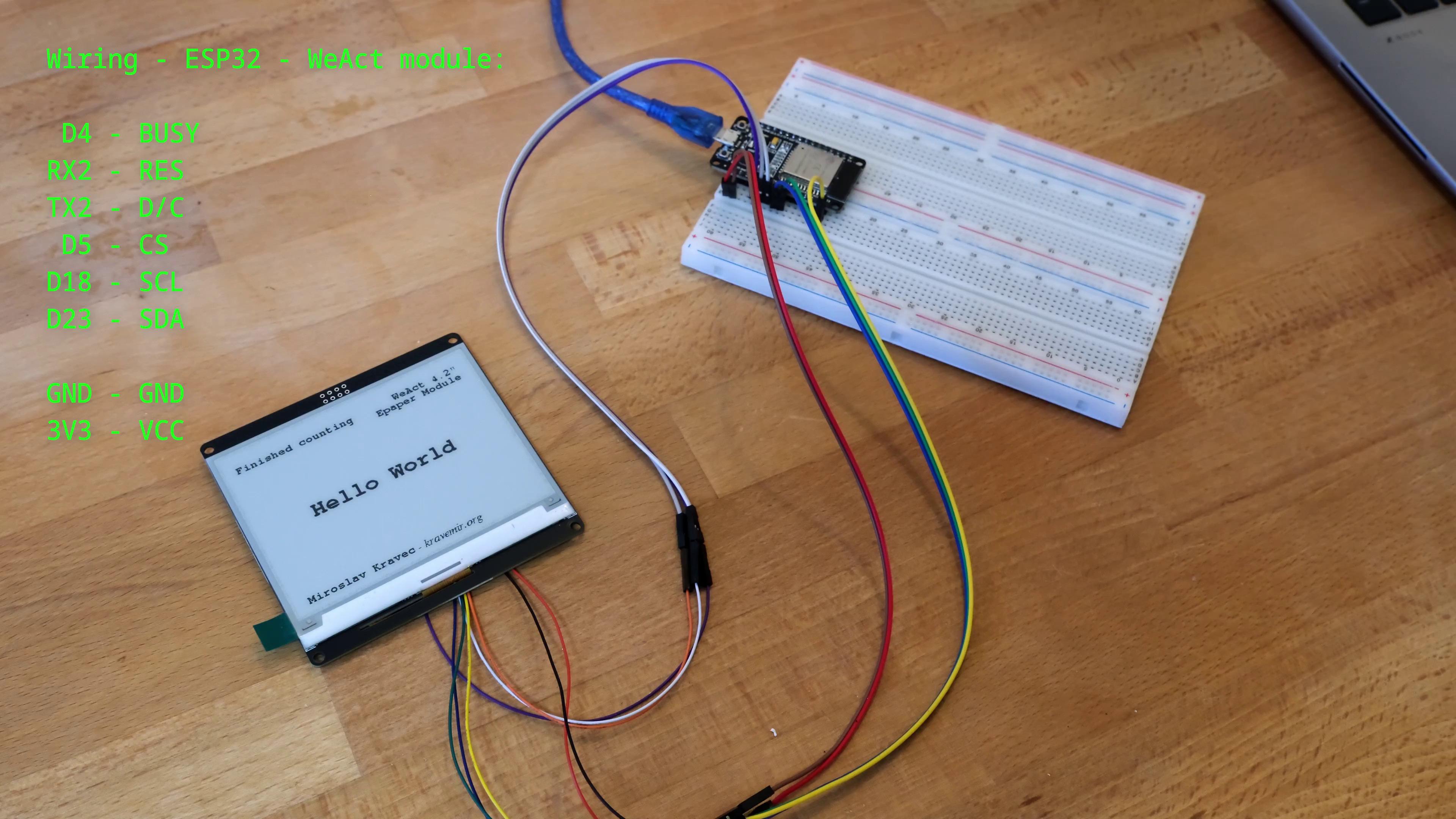

Wiring ESP32 and WeAct 4.2" Epaper Module

Full source code for ESP32

Source code:

#define ENABLE_GxEPD2_GFX 0

#include <GxEPD2_BW.h>
#include <Fonts/FreeMonoBold18pt7b.h>
#include <Fonts/FreeMonoBold9pt7b.h>
#include <Fonts/FreeSerifItalic9pt7b.h>

// WeAct 4.2" Epaper Module
GxEPD2_BW<GxEPD2_420_GDEY042T81, GxEPD2_420_GDEY042T81::HEIGHT> display(GxEPD2_420_GDEY042T81(/*CS=5*/ SS, /*DC=*/ 17, /*RST=*/ 16, /*BUSY=*/ 4));

void setup()
{
  display.init(115200, true, 50, false);

  helloWorld();
  delay(1000);

  fullRedraw();
  delay(1000);

  helloWorld();
  delay(1000);

  showPartialUpdate();

  display.hibernate();
}

void helloWorld()
{
  display.setRotation(0);
  display.setTextColor(GxEPD_BLACK);

  int16_t tbx, tby; uint16_t x, y, tbw, tbh;

  display.setFullWindow();
  display.firstPage();
  do
  {
    display.fillScreen(GxEPD_WHITE);

    display.setFont(&FreeMonoBold18pt7b);
    display.getTextBounds("Hello World", 0, 0, &tbx, &tby, &tbw, &tbh);
    x = ((display.width() - tbw) / 2) - tbx;
    y = ((display.height() + tbh) / 2) - tby;
    display.setCursor(x, y - tbh);
    display.print("Hello World");

    display.setFont(&FreeMonoBold9pt7b);
    display.getTextBounds("WeAct 4.2\"", 0, 0, &tbx, &tby, &tbw, &tbh);
    x = (display.width() - tbw) - 20 - tbx;
    y = 20;
    display.setCursor(x, y - tby);
    display.print("WeAct 4.2\"");
    y = y + tbh + 5;

    display.setFont(&FreeMonoBold9pt7b);
    display.getTextBounds("Epaper Module", 0, 0, &tbx, &tby, &tbw, &tbh);
    x = (display.width() - tbw) - 20 - tbx;
    display.setCursor(x, y - tby);
    display.print("Epaper Module");

    x = 20;
    y = display.height() - 12;

    display.setFont(&FreeMonoBold9pt7b);
    display.getTextBounds("Miroslav Kravec", 0, 0, &tbx, &tby, &tbw, &tbh);
    y = y - tbh;
    display.setCursor(x - tbx, y - tby);
    display.print("Miroslav Kravec");
    x = x + tbw;

    display.setFont(&FreeSerifItalic9pt7b);
    display.getTextBounds(" - kravemir.org", 0, 0, &tbx, &tby, &tbw, &tbh);
    display.setCursor(x - tbx, y  - tby);
    display.print(" - kravemir.org");

    display.setFont(&FreeMonoBold18pt7b);
  }
  while (display.nextPage());
}

void fullRedraw()
{
  display.setRotation(0);
  display.setTextColor(GxEPD_BLACK);

  int16_t tbx, tby; uint16_t x, y, tbw, tbh;

  display.setFullWindow();
  display.firstPage();
  do
  {
    display.fillScreen(GxEPD_WHITE);

    display.setFont(&FreeMonoBold18pt7b);
    display.getTextBounds("Full Refresh", 0, 0, &tbx, &tby, &tbw, &tbh);
    x = ((display.width() - tbw) / 2) - tbx;
    y = ((display.height() + tbh) / 2) - tby;
    display.setCursor(x, y - tbh);
    display.print("Full Refresh");
  }
  while (display.nextPage());
}

void showPartialUpdate()
{
  char textBuffer[50];

  uint16_t box_x = 16;
  uint16_t box_y = 12;
  uint16_t box_w = 200;
  uint16_t box_h = 30;

  uint16_t cursor_y = box_y + box_h - 6;
  uint16_t incr = display.epd2.hasFastPartialUpdate ? 1 : 3;

  display.setFont(&FreeMonoBold9pt7b);
  display.setTextColor(GxEPD_BLACK);

  display.setPartialWindow(box_x, box_y, box_w, box_h);
  for (uint16_t i = 1; i <= 10; i += incr)
  {
    display.firstPage();
    do
    {
      sprintf(textBuffer, "Counter: %d", i);
      display.fillRect(box_x, box_y, box_w, box_h, GxEPD_WHITE);
      display.setCursor(box_x, cursor_y);
      display.print(textBuffer);
    }
    while (display.nextPage());
    delay(500);
  }
  delay(1000);

  display.firstPage();
  do
  {
    display.fillRect(box_x, box_y, box_w, box_h, GxEPD_WHITE);
    display.setCursor(box_x, cursor_y);
    display.print("Finished counting");
  }
  while (display.nextPage());
}

void loop() {
  // no loop
}

Demonstration video

Demonstration of functionality with ESP32:
